Multi-Tube Furnace

Multi-Tube / Pre Heat Furnace

1400°C

Overview

Multi Tube/Pre Heat Furnaces with multiple tubes are versatile, energy-efficient, and especially suitable for baking fluxes and crucibles. The baking process reduces contaminants and improves measurement accuracy and precision.

The baking process is simple and easy to implement and it can effectively remove impurities and moisture adsorbed by crucibles, samples and fluxes during storage, reducing the blank value and stabilizing the measured value, improving accuracy and precision of measurement.

For consistent and reliable results in various analytical applications, the design of TMTH14 series Multi Tube/Pre Heat Furnaces focuses on precise temperature control and uniform heating.

The TMTH14 series Multi Tube/Pre Heat Furnace offers greater efficiency because it allows the operator to burn off crucibles simultaneously in four combustion tubes, which increases productivity up to four times.

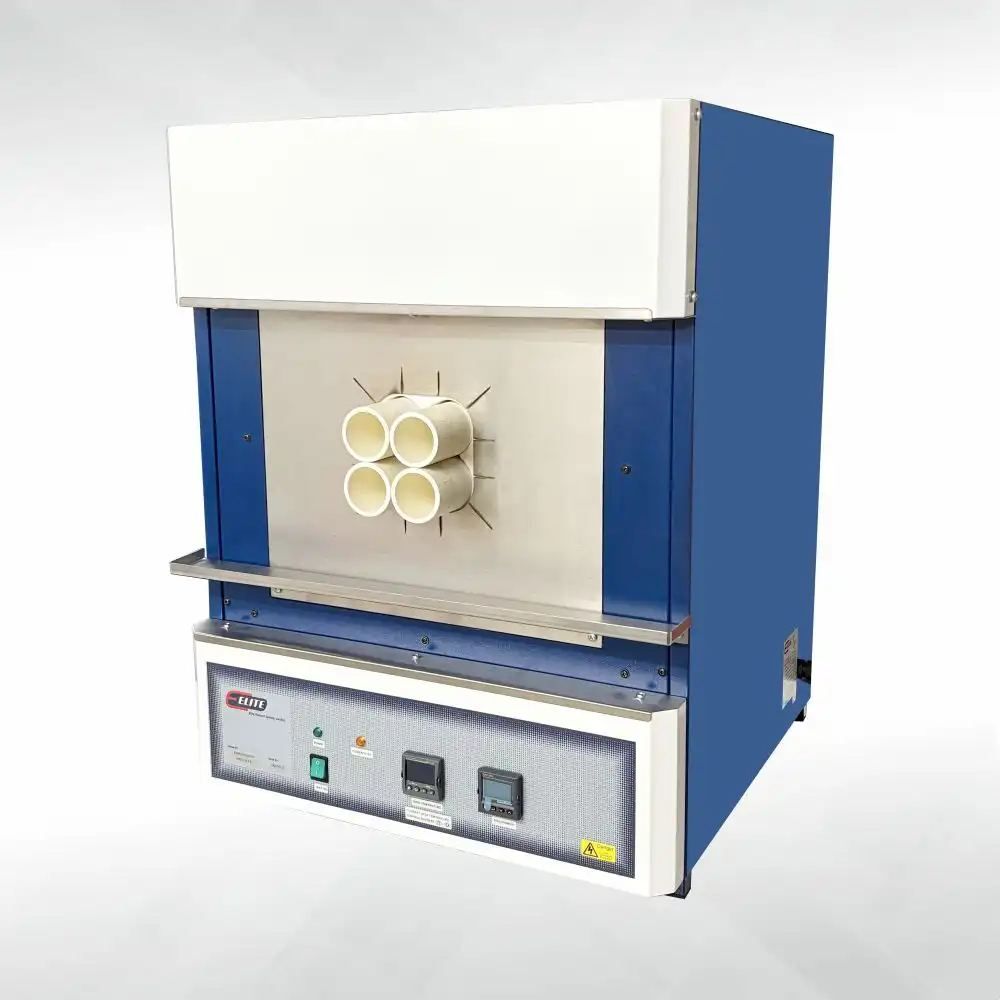

Multi-Tube Furnace
Standard Features
  • Maximum Furnace Temperature: 1400°C Continuous
  • Operating Temperature: 600°C to 1350°C
  • This product is a stylish bench mounted furnace with integral controls mounted in its base, and is fitted with a shelf to store the crucibles
  • Faster heating and cooling with high quality and high efficiency insulation Equipped with high-quality heating elements designed to achieve fast ramp rates
  • Inner diameter of tube is 50mm for crucibles, samples and fluxes baking
  • R-type thermocouple for precise temperature measurement
  • High end microprocessor PID temperature controller
  • Easy to use temperature controller clearly displays set temperature or actual temperature
  • This furnace design requires four separate work tubes, made from a grade suitable for the maximum temperature rating of 1400°C
  • The combustion tubes are designed with both ends open, allowing for easy manual loading of crucibles from the front and unloading from the rear
  • Work tubes are not included with the furnace and must be purchased separately, as they are essential accessories
  • An independent over-temperature controller is fitted as standard
  • Power Supply: 230V - 1 Phase - 50Hz with N & E
Technical Details
Item Name Part Number
Multi Tube Furnace, Single Zone TMTH14/50x4/350
Single Tube Furnace, Single Zone TMTH14/50/350

Note: For all multi-tube/pre heat furnaces, Elite Thermal Systems manufactures custom-built solutions. Please contact us with your specific requirements
