Light Industral Chamber Furnaces

Light Industrial Chamber Furnaces - BIF 12, 14, 15 & 17

1200°C to 1700°C Maximum

Overview

BIF12

The BIF 12 furnaces are designed for general purpose industrial heat treatment applications which include-stress relieving normalising and annealing. Elite offers a bespoke design service to tailor the BIF design to meet your specific process requirements.

BIF14, 15, 17

The BIF furnaces are designed for high temperature heat treatment applications for high temperature materials such as precious metals & technical ceramics.

The applications include sintering of Engineering Ceramics, Metal Heat Treatments and Glass Melting and Processing.

Elite offer a bespoke design service to tailor the BIF design to meet your specific process requirements.

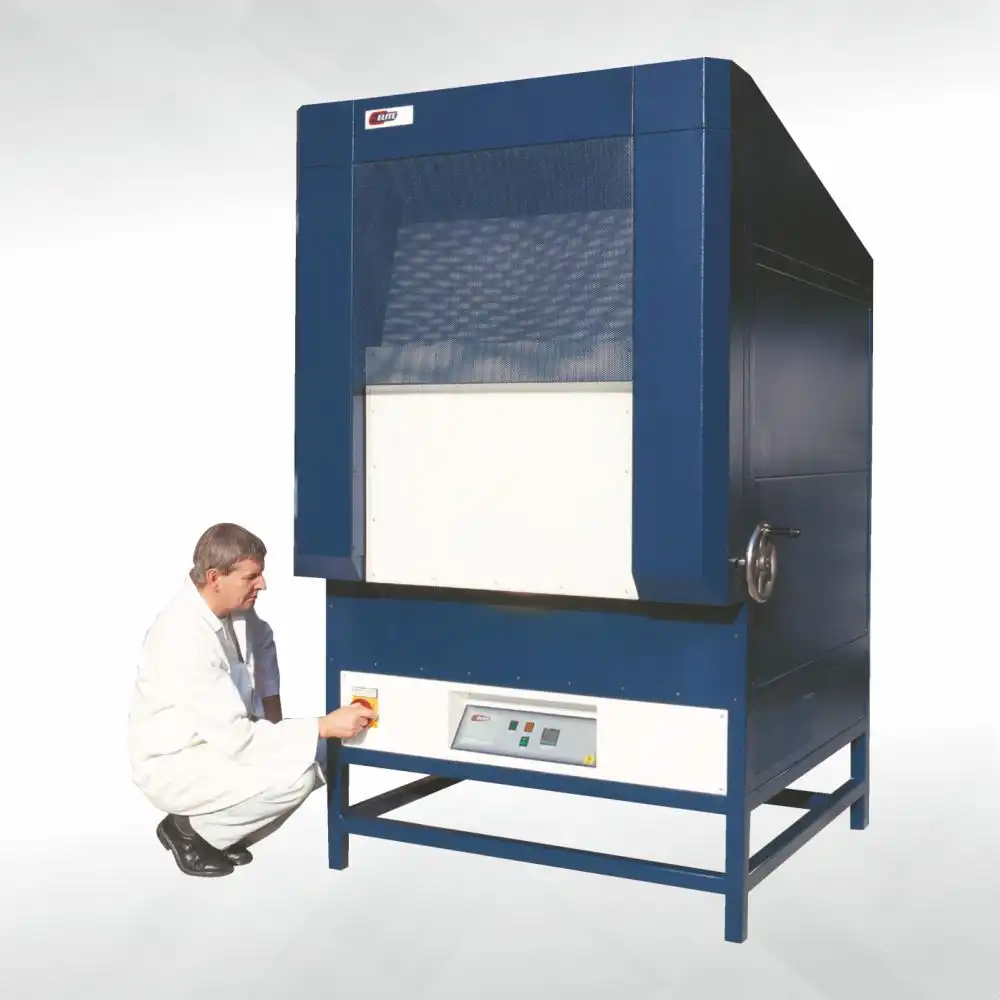

Light Industrial Chamber Furnaces
Standard Features
BIF12
  • Free radiating coiled wire elements.
  • Low thermal mass insulation.
  • Traditional hard-wearing refractory used for chamber hearth and entrance which protects against damage and supports heavier loads.
  • The insulated door opens upwards and outwards keeping the hot face away from the operator.
  • The door switch isolates power from the heating elements whenever the door is opened for maximum operator safety.
  • A small chimney is fitted as standard.

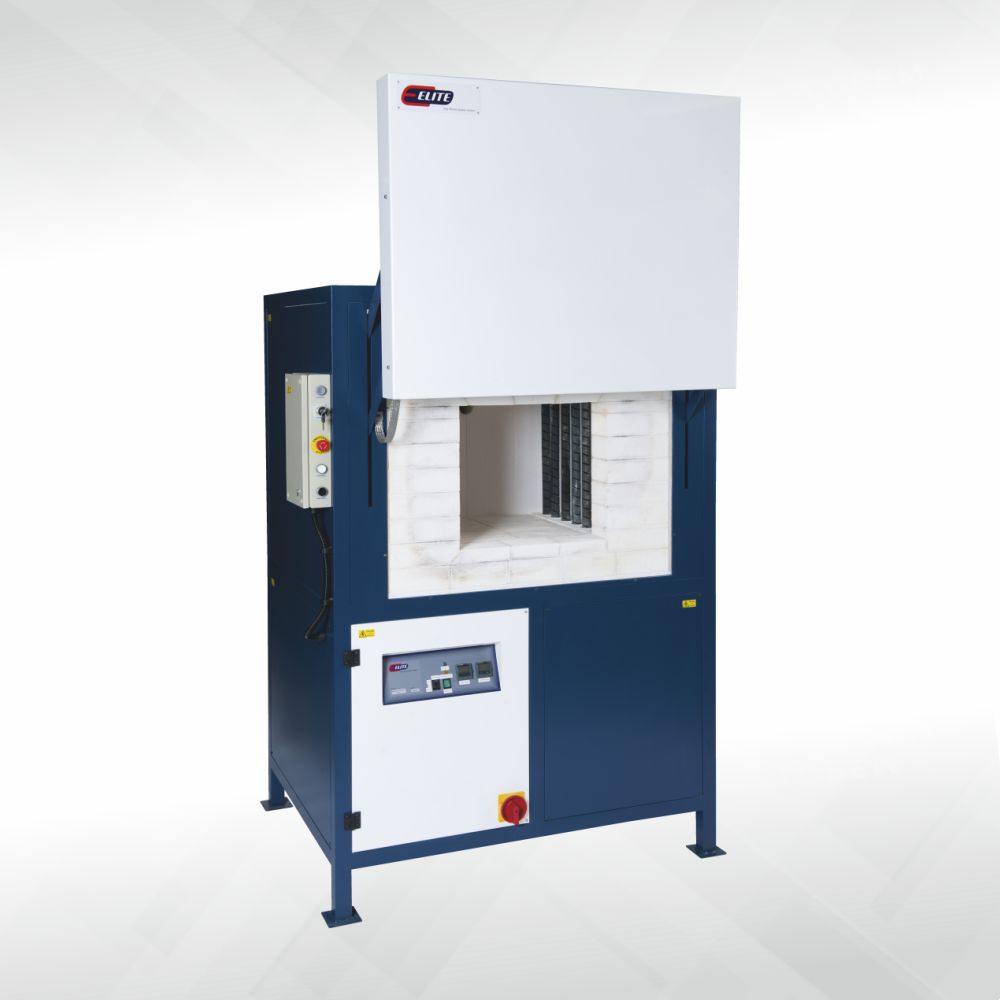

BIF14, 15, 17
  • Generally low thermal mass insulation with brick front and hearth.
  • The furnace is fitted with an upward opening door that keeps the hot face away from the operator.
  • Over temperature protection is included in the standard specification.
  • Door switch isolates power from the heating elements whenever the door is opened for maximum safety.
  • A small ceramic chimney is fitted as standard.
Technical Details
BIF12
Model Max Temp (°C) Max Cont (°C) Max Chamber
Dims (mm)
HxWxD		 External Case
Dims (mm)
HxWxD		 Chamber Capacity (Litres) Max Power (Kw) Volts Phase
BIF12/72 1200 1150 300x400x600 860x825x945 72 14 400 3
BIF12/102 1200 1150 350x450x650 1800x950x1150 102 20 400 3
BIF12/203 1200 1150 450x600x750 1950x1275x1225 203 35 400 3
BIF14, 15, 17
Model Max Temp (°C) Max Cont (°C) Max Chamber
Dims (mm)
HxWxD		 External Case
Dims (mm)
HxWxD		 Chamber Capacity (Litres) Max Power (Kw) Volts Phase
BIF14/102 1400 1400 350x450x650 1800x950x1150 102 30 400 3
BIF14/203 1400 1400 450x600x750 1950x1275x1225 203 45 400 3

















BIF15/102 1500 1500 350x450x650 1800x950x1150 102 30 400 3
BIF15/203 1500 1500 450x600x750 1950x1275x1225 203 45 400 3

















BIF17/82 1700 1700 450x300x610 1830x1010x1000 82 24 400 3
BIF17/91 1700 1700 450x450x450 1960x1510x1125 91 24 400 3
BIF17/227 1700 1700 610x610x610 2150x1610x1200 227 36 400 3
