TSHVC15

Vacuum Tube Furnace - TSHvc15

1500°C Maximum

Overview

The TSHvc15 is a horizontal tube furnace equipped with integral vacuum equipment. The Low Vacuum model achieves an ultimate vacuum of better than 5x10⁻² mbar, while the High Vacuum model features a turbomolecular pump, reaching a vacuum level of 5x10⁻⁵ mbar or better, with a clean, empty work tube.

Heating Elements

Top grade silicon carbide rods mounted parallel with and equispaced around the furnace tube.

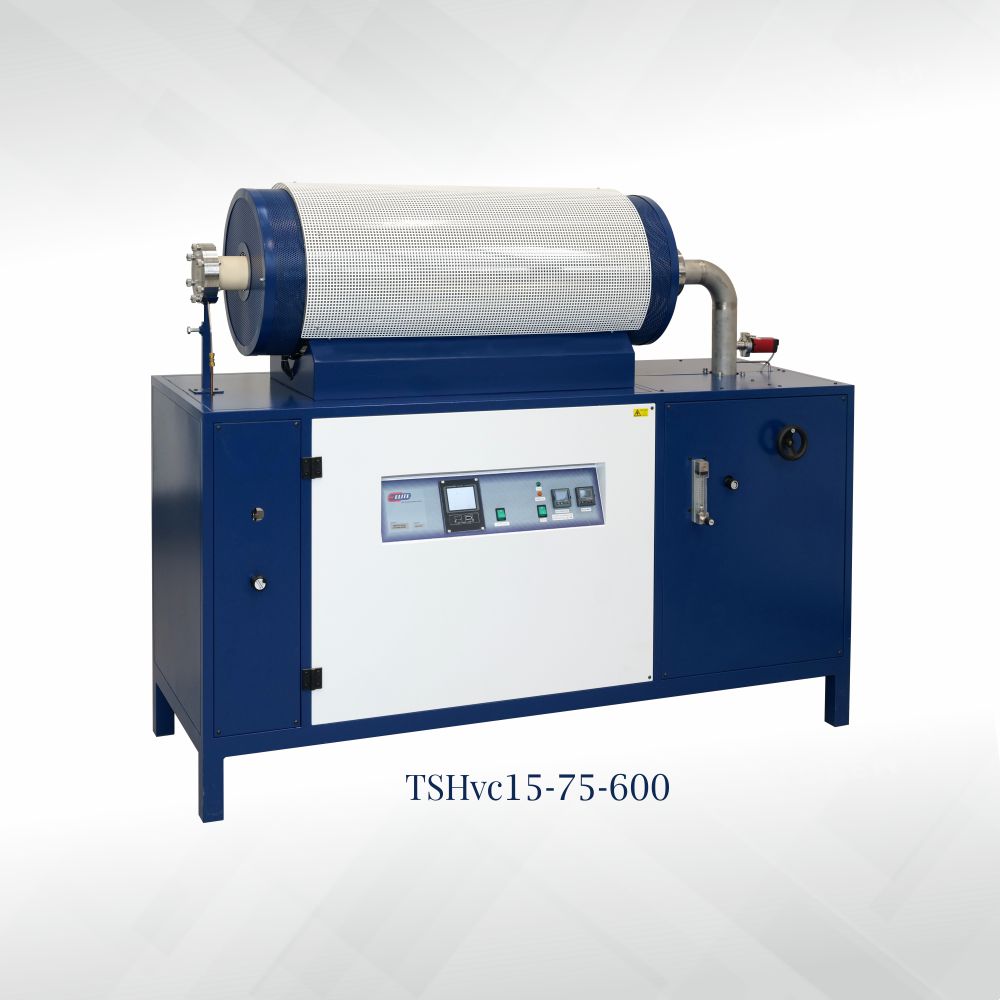

Vacuum Tube Furnaces TSHVC15

Vertical versions are available which have a separate console.

Standard Features
  • Heating is via silicon carbide elements.
  • Temperature Sensor: 'R' typ Thermocouple.
  • Energy efficient, high quality, low thermal mass insulation.
  • Over Temperature protection controller.
  • High end Microprocessor PID controller.
  • Ceramic work tube.
  • Vacuum ready end flange gas tight seals.
  • Thermal radiation plugs.
  • Rotary pump-two stage sliding vane type for ultimate vacuum level up to 5x10-2 mbar with clean empty work tube.
  • Turbo molecular pump-ultimate vacuum level up to 5x10-5 mbar.
  • Pirani gauge-wide range full vacuum monitoring.
  • Flowmeter for control of gas throughput. Vacuum tight valve.
  • Gas in/outlet valve.
Optional Features
  • Multi segment, multi program storage controller.
  • Semi-automatic or fully automatic vacuum/heating cycles.
Technical Details
Model Max
Temp
(°C)		 Max
Cont
(°C)		 Tube
Diameter
(ID) (mm)		 Heated
Length
(mm)		 Nominal
Power
(kW)		 Volts Phase Ext
Dimensions (mm)
HxWxD		 Net
Wt.
(kg)		 Radiation
Screens
Ceramic		 Radiation
Screens
Metalic
TSHvc15/50/450-HV 1500 1450 50 450 5.8 230 1 1500x1700x700 195 ✓ ✓
TSHvc15/50/450-LV 1500 1450 50 450 5.8 230 1 1500x1700x700 195 ✓ ✓
TSHvc15/75/450-HV 1500 1450 75 450 5.8 230 1 1500x1700x700 195 ✓ ✓
TSHvc15/75/450-LV 1500 1450 75 450 5.8 230 1 1500x1700x700 195 ✓ ✓
TSHvc15/75/600-HV 1500 1450 75 600 5.8 230 1 1500x1850x700 195 ✓ ✓
TSHvc15/75/600-LV 1500 1450 75 600 5.8 230 1 1500x1850x700 195 ✓ ✓

Note 1:

  1. The work tube is not supplied as an integral part of the furnace and therefore needs to be purchased with the order as it is an essential accessory.
  2. Vacuum Tube furnaces are available with Multi-zone configuration and will be offered upon request.

Custom Designed For all Tube furnaces, Elite Thermal manufactures custom-built furnaces. Please write to us with your requirement.
