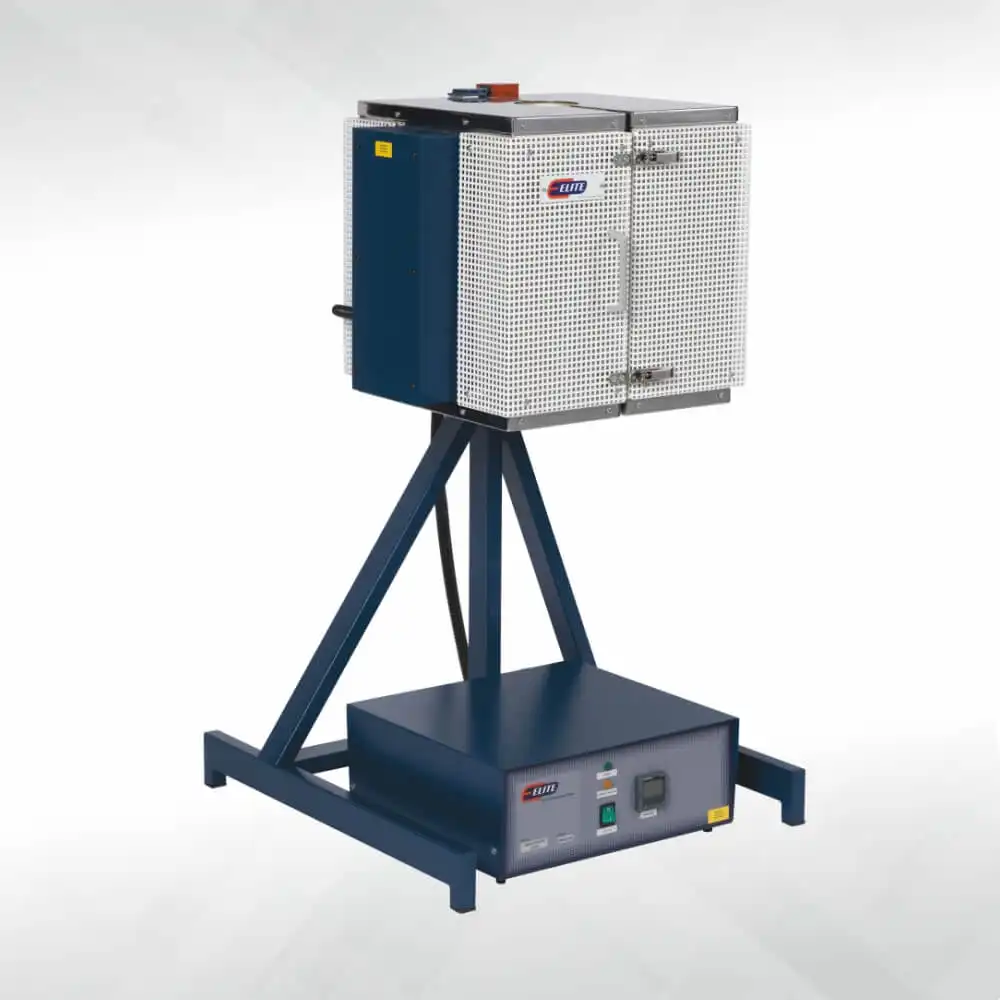

The TSVH split tube furnace is designed to meet the needs of 'in-line' thermal processes, and for when rapid cooling is required.
Free radiating high grade resistance wire elements supported on ceramic tubes.
Model | Max Temp (°C) | Max Cont (°C) | Furnace Bore Size (mm) | Heated Length (mm) | Max Power (kW) |
Volts | Phase | Ext Dimensions (mm) H x W x D |
Net Wt. (kg) | Worktubes (ID x Length) mm nom Short |
Worktubes (ID x Length) mm nom Long |
---|---|---|---|---|---|---|---|---|---|---|---|
TSVH11/90/305 | 1100 | 1050 | 90 | 305 | 2.1 | 230 | 1 | 538x405x660 | 37 | 75x450 | 75x700 |
TSVH11/90/457 | 1100 | 1050 | 90 | 457 | 2.8 | 230 | 1 | 538x557x660 | 46 | 75x600 | 75x900 |
TSVH11/90/610 | 1100 | 1050 | 90 | 610 | 4.2 | 230 | 1 | 538x710x660 | 72 | 75x750 | 75x1050 |
Note 1:
The work tube is not supplied as an integral part of the furnace and therefore needs to be purchased with the order as it is an essential accessory.
Custom Designed For all Tube furnaces, Elite Thermal manufactures custom-built furnaces. Please write to us with your requirement.
