Light Industral Chamber Furnaces

Light Industrial Chamber Furnaces-BIF17

1700 °C

Overview

The BIF17 furnaces are designed for high temperature heat treatment applications for high temperature materials such as precious metals & technical ceramics. BIF17 offers chamber capacity ranging from 82 to 227 liters in standard versions. Other chamber capacities/volumes are offered in custom-built models.

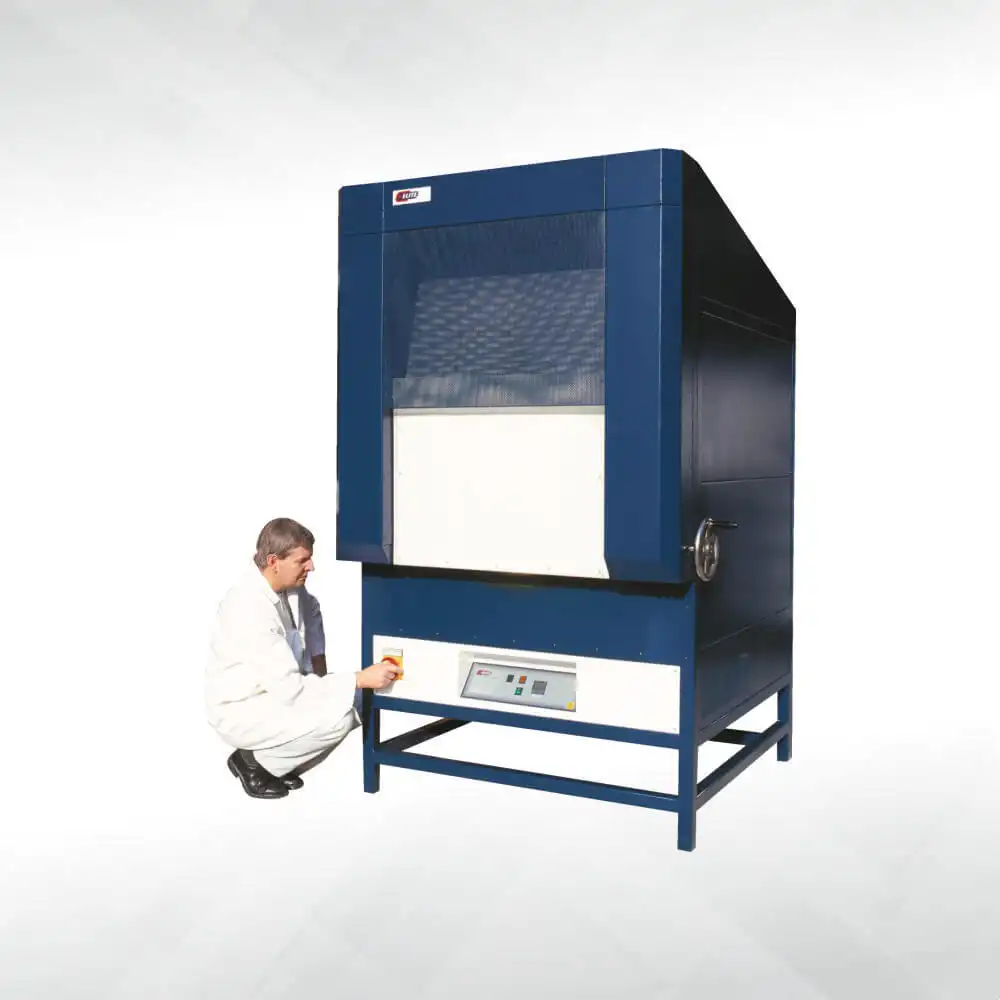

Light Industrial Chamber Furnaces BIF17
Standard Features
  • Substantial Molybdenum Disilicide loop elements mounted on 2 chamber sides.
  • Dense refractory front vestibule, chamber floor and part side walls; remainder low thermal mass ceramic fibre materials.
  • Robust rolled hollow section steel framework with folded edge infill panels, all finished in a durable stoved epoxy enamel.
  • Overtemperature protection system included as standard.
  • The furnace is fitted with an electrically operated upward opening door on a parallel link that keeps the hot face away from the operator.
  • B-type thermocouple.
  • High end Microprocessor PID controller.
  • A small ceramic chimney is fitted as standard.
Options
  • Retorts and gas control systems are available for when processes involve inert or reducing atmospheres.
  • Independent monitoring probes.
  • Calibration/furnace surveys.
  • Over temperature protection controller.
  • Loading/unloading systems.
  • Multi-segment, multi program storage controllers.
Technical Details
Model Max Temp (°C) Max Cont (°C) Max Chamber
Dims (mm)
HxWxD		 External Case
Dims (mm)
HxWxD		 Chamber Capacity (Litres) Max
Power
(kW)		 Volts Phase
BIF17/82 1700 1650 450x300x610 1830x1010x1000 82 24 400 3
BIF17/91 1700 1650 450x450x450 1960x1510x1125 91 24 400 3
BIF17/227 1700 1650 610x610x610 2150x1610x1200 227 36 400 3

Custom Designed For all Chamber furnaces, Elite Thermal manufactures custom-built furnaces. Please contact us with your requirement.
