High Temperate Chamber Furnace

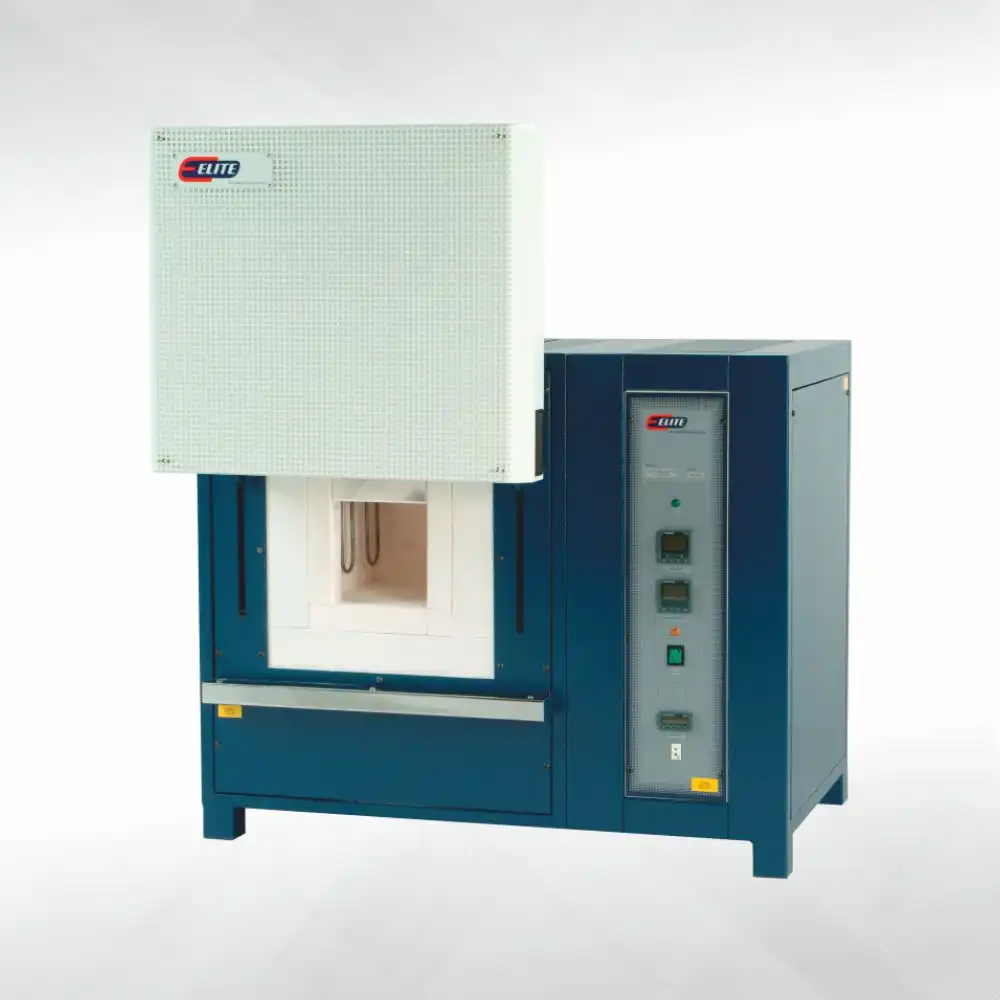

High Temperate Chamber Furnaces - BRF14, BRF15 & BRF16

1400°C - 1600°C Maximum

Overview

The BRF14, BRF15 & BRF16 models form a comprehensive range of high thermal efficiency, rapid heating chamber furnaces.

gallery img
gallery img
Standard Features
  • The BRF14, BRF15 & BRF16 models are heated by silicon carbide rod elements.
  • Silicon carbide heating elements provide long life and are able to withstand the stress of intermittent operation.
  • Outer case manufactured from standard steel sheet finished with tough yet attractive epoxy powder paint.
  • A door switch isolates power from the heating elements whenever the door is opened for maximum operator safety.
  • Vertically lifting door keeps the hot surface away from the user.
  • Manually operated insulated vertical lift door which opens upward and outwards keeping the hot face away from the operator.
  • R type Thermocouple.
  • A small ceramic chimney is fitted as standard.
  • High end Microprocessor PID controller.
Optional Features
  • Electrically operated doors are available as chargeable option (E).
  • Multi segment, multi program storage controllers.
  • Over temperature protection controller is optional.
  • Side-opening doors are also available if needed
Technical Details
Model Max Temp (°C) Max Cont (°C) Internal Chamber
Dimensions (mm)
HxWxD		 External Case
Dimensions (mm)
HxWxD		 Chamber
Capacity
(Litres)		 Max
Power
(Kw)		 Volts Phase Net Wt. (kg)
BRF14/5 1400 1350 150x140x250 730x580x645 5 4.5 230 1 58
BRF14/10 1400 1350 190x180x310 780x630x692 10 7.5 230 1 74
BRF14/15 1400 1350 225x225x300 892x802x740 15 8.5 400 3 100
BRF14/27 1400 1350 290x270x340 892x802x740 27 12.0 400 3 110
BRF15/5 1500 1450 150x140x250 730x580x645 5 4.5 400 3 58
BRF15/10 1500 1450 190x180x310 780x630x692 10 7.5 400 3 74
BRF15/15 1500 1450 225x225x300 892x802x740 15 8.5 400 3 100
BRF15/27 1500 1450 290x270x340 892x802x740 27 12.0 400 3 110
BRF16/5 1600 1550 150x140x250 730x580x670 5 5.0 400 3 59
BRF16/10 1600 1550 190x180x310 780x630x715 10 10.0 400 3 74
BRF16/15 1600 1550 225x225x300 1050x950x823 15 11.0 400 3 100
BRF16/26 1600 1550 255x300x340 1050x950x823 26 14.0 400 3 110
BRF16/35 1600 1550 255x300x465 1475x1100x1000 35 16.0 400 3 380

Custom Designed For all Chamber furnaces, Elite Thermal manufactures custom-built furnaces. Please contact us with your requirement.

BRF17, BRF18 Models
Model Max Temp (°C) Max Cont (°C) Max Chamber
Dims (mm)
HxWxD		 External Case
Dims (mm)
HxWxD		 Chamber Capacity (Litres) Max Power (Kw) Volts Phase Net Wt. (kg)
BRF17/5M 1700 1650 160x150x215 635x900x695 5 4.4 230 1 128
BRF17/5E 1700 1650 160x150x215 635x900x695 5 4.4 230 1 128
BRF17/12M & E 1700 1650 230x230x230 1550x850x740 12 7.6 230 1 230
BRF17/27E 1700 1650 300x300x300 1600x880x800 27 12.0 400 3 316
BRF18/5M 1800 1750 170x150x200 635x900x785 5 4.7 230 1 170
BRF18/5E 1800 1750 170x150x200 635x900x785 5 4.7 230 1 170
BRF18/13M/E 1800 1750 220x200x300 1600x880x800 13 9.0 230 1 287
BRF18/18E 1800 1750 220x200x400 1600x880x800 18 11.6 230 1 365
BRF18/27E 1800 1750 300x300x300 1600x1050x880 27 15.0 400 3 494
